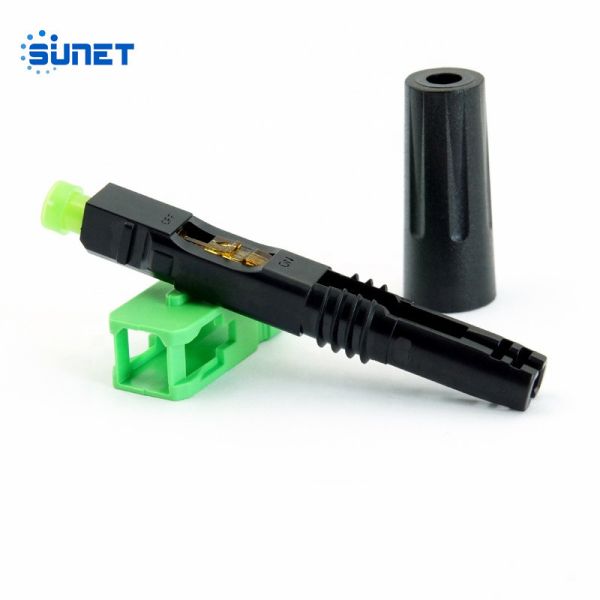

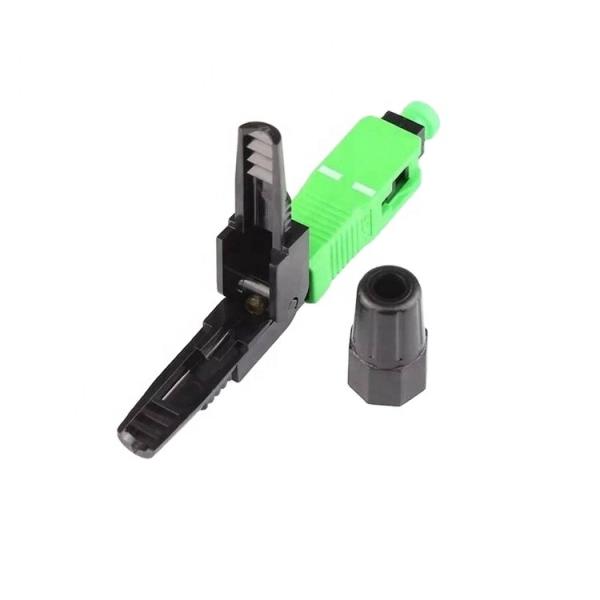

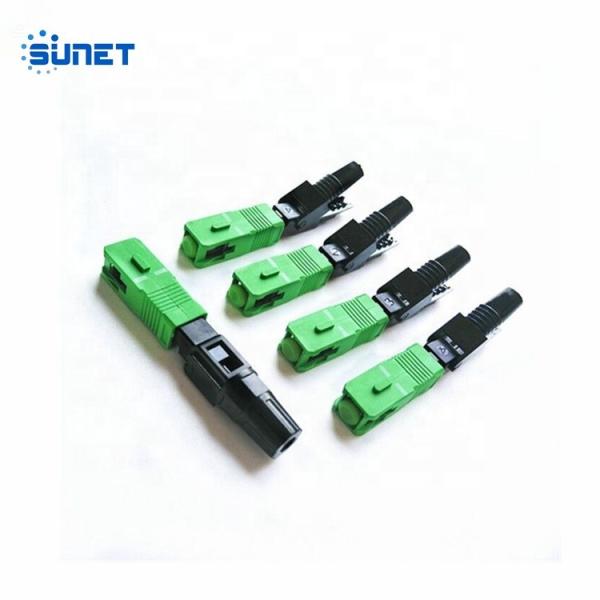

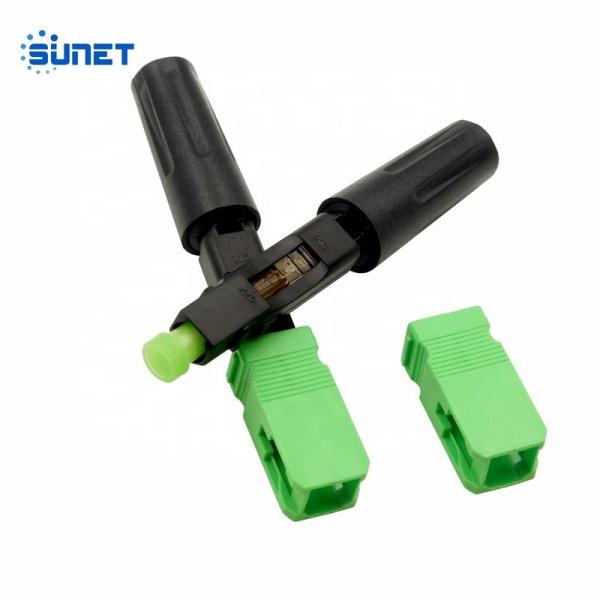

FTTH Fiber Optic Sc APC UPC Connector 55db

Name: FTTH Fiber Optic Sc APC UPC Connector 55db
Brand: SUNET
Price: 0.25 USD

Wholesale FTTH Fiber Optic Sc APC UPC Connector 55db from china suppliers

Brand Name : SUNET

Model Number : SUNET-12

Certification : ISO9001,RoHS

Place of Origin : China

MOQ : 1 piece

Price : USD 0.25-0.3 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000 per month

Delivery Time : 5-8 days

Packaging Details : box+ carton

Insertion loss : <0.3dB

Application : FTTH FTTB FTTX Network

Connector type : SC

Return loss : > 55db

Color : Green

Type : SC

Product name : FTTH SC fast quick connector

Fiber type : SM

Operating temperature : -40~75

Name : fast connector

Connector : SC Fiber Optic connector

Lead time : 3-7working days

Contact Now

Free Sample FTTH Fiber Optic Sc APC/ UPC Fast Quick Connector

Describtion

Fiber Optic Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Feature

1.Quickly assembly connetor
2.High return loss,low insert
3.Cost effective portable
4.Install quickly
5.Reliable and superior optical performance

Application

1.Patch panels
2.Distribution frames
3.Maintenance or emergency restoration of fiber networks
4.FTTH Outlets
5.Connection at the desk for LAN environments

Specification

Product name	Fiber Optic Field Assembly Fast Connector
Type	Pre-Embedded
Suitable optical fiber	2.0*3.0 cable
Fiber mode	Single & Multi mode
Installation time	Within 60s ( No fiber cut )
Insertion loss	≤ 0.3dB (Max 0.5)
Return loss	≥ 50dB
Tensile strength	> 50N
Working Temperature	-40~+75ºC
Storage Temperature	-40~+85ºC
